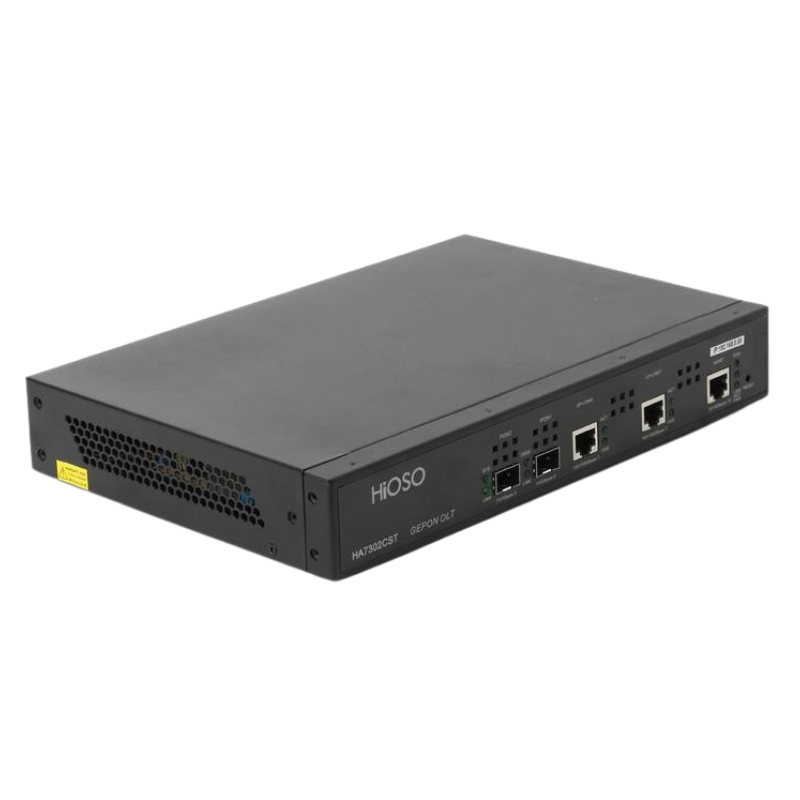

HIOSO OLT HA7302CST 2PORT Epon (New)

HIOSO OLT HA7302CST 2-Port EPON – Talisa Technologies

Rolling out a fibre network for a town, village, estate, or surveillance project and need a compact, standalone OLT to get started? The HIOSO HA7302CST 2-Port EPON OLT, available at Talisa Technologies (talisaphones.co.ke), is a mini 2-PON optical line terminal built to establish a complete passive optical network with minimal footprint. If you've been searching for the price of HIOSO HA7302CST in Kenya, this OLT offers a cost-effective entry point for ISPs and installers deploying smaller EPON networks.

Built for compact FTTX deployment, the HA7302CST is a solid pick for anyone searching for a 2 port EPON OLT in Kenya, a mini EPON OLT for FTTH, or a HiOSO fibre OLT for surveillance and IPTV networks.

Why Choose the HIOSO HA7302CST from Talisa Technologies?

The HA7302CST is a standalone 2-PON OLT designed to work with HA7200 series ONUs and standard ODN infrastructure to build out a complete passive optical network. Each of its 2 SFP PON ports supports a 1:32 split ratio, giving the unit a standard capacity of 64 ONUs and a maximum of 128 ONUs across both ports, enough for small to mid-sized FTTX rollouts. At a 1:32 split ratio, the OLT supports transmission distances of up to 20km, dropping to a maximum 1:64 ratio per port if you need to prioritize subscriber count over distance. It operates at 1310nm (RX) / 1490nm (TX) with optical output power of +0 to +7dBm and receiving sensitivity of -27dBm, delivering full line-speed L2/L3 switching capacity for demanding applications. Connectivity includes 2 Gigabit RJ45 uplink ports and a dedicated 10/100M RJ45 management port, keeping admin traffic separate from live subscriber data, while a 1U rack-mount design with an internal cooling fan supports better heat dissipation and long-term reliability. On the EPON side, it supports IEEE 802.3ah, Dynamic Bandwidth Allocation (DBA) with 1Kbps granularity, AES-128 encryption per Logical Link Identifier, and automatic ONU discovery and registration, alongside WEB, SNMP, and CLI management for flexible day-to-day administration. It's well suited for town and village fibre networks, surveillance backhaul, and general FTTX deployments carrying IP phone, data, and IPTV services. Shop with confidence at talisaphones.co.ke, your trusted destination for genuine HiOSO fibre networking equipment in Kenya.

HIOSO HA7302CST Specifications

Key Benefits at a Glance

• Compact Standalone Deployment – Mini 2-PON design simplifies setup for smaller ISP or estate networks

• Flexible Capacity vs. Distance – Choose between higher ONU count (1:64) or longer reach (1:32, 20km)

• Full Line-Speed Switching – L2/L3 transition capacity handles data, IPTV, and VoIP without bottlenecks

• Secure by Design – AES-128 encryption protects each subscriber's Logical Link Identifier

• Flexible Management – WEB, SNMP, and CLI options suit both small teams and larger NOC environments

• Genuine Product Guarantee – Purchase with confidence from Talisa Technologies, a trusted HiOSO equipment retailer in Kenya

Perfect For

ISPs rolling out fibre networks to towns, villages, or estates; security integrators backhauling CCTV networks over fibre; installers deploying FTTX connections for IPTV, VoIP, and data services; smaller network operators needing an affordable, standalone OLT across Nairobi and Kenya.

Frequently Asked Questions

How many ONUs can the HA7302CST support?
At the standard 1:32 split ratio per port, it supports 64 ONUs total across its 2 PON ports, with a maximum of 128 ONUs if configured at a 1:64 split ratio.

What's the maximum transmission distance?
Up to 20km at a 1:32 split ratio. Pushing to the maximum 1:64 split ratio increases subscriber capacity but may reduce effective reach depending on network conditions.

What ONUs is this OLT compatible with?
The HA7302CST is designed to work with HiOSO's HA7200 series ONUs and standard ODN infrastructure to build a complete passive optical network.

Does this OLT support remote management?
Yes, it supports WEB-based management, SNMP, and CLI/Telnet access, along with a dedicated RJ45 console port for direct device debugging.

Is this OLT suitable for IPTV and VoIP services?
Yes, it supports full line-speed L2/L3 transition capacity and symmetrical 1Gbps bandwidth, making it suitable for delivering data, IP phone, and IPTV services over the same network.

Get Yours from Talisa Technologies

Talisa Technologies is a trusted HiOSO fibre networking equipment supplier in Kenya, offering genuine, quality tested products with reliable delivery nationwide. As a dependable source for ISPs and network installers, we guarantee authentic hardware and solid after sales support. If you need a compact, capable OLT to launch or expand your fibre network, the HIOSO HA7302CST 2-Port EPON OLT is a practical, cost-effective choice.
